 Home > PRODUCT > Floating Ball Valves
|
|
|
| |
|
| |

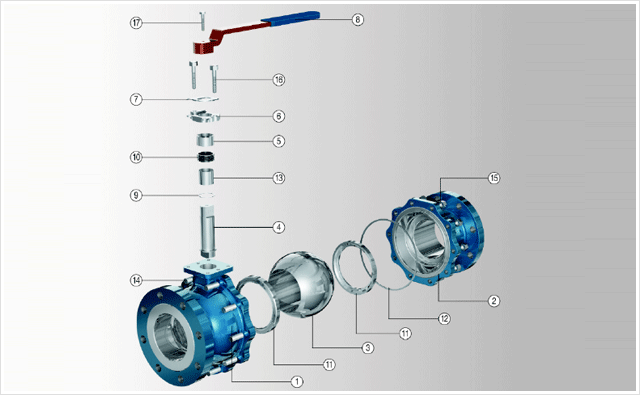

| Standard Material Specifications
-MODEL FB1-
|
| |
 |
| |
| |
| NO |
Part Name |
Q'ty |
Carbon Steel |
Stainless Steel NACE |
| 1 |
Body |
1 |
A213-WCB |
A351-CF8M |
| 2 |
Retainer |
1 |
A213-WCB |
A351-CF8M |
| 3 |
Ball |
1 |
A351-CF8M |
A351-CF8M |
| 4 |
Stem |
1 |
A276-316 |
A276-316 |
| 5 |
Gland |
1 |
A276-304 |
A176-304 |
| 6 |
Gland Flange |
1 |
A167-304 |
A167-304 |
| 7 |
Stopper |
1 |
A167-304 |
A167-304 |
| 8 |
Handle |
1 |
DUCTILE CAST IRON |
|
|
| |
| 9 |
Thrust Washer |
1 |
A213-WCB |
A351-CF8M |
| 10 |
Gland packing |
1 |
A213-WCB |
A351-CF8M |
| 11 |
Seat |
1 |
A351-CF8M |
A351-CF8M |
| 12 |
Gasket |
1 |
A276-316 |
A276-316 |
| 13 |
Gasket |
1 |
A276-304 |
A176-304 |
| 14 |
Stem Bearing |
1 |
A167-304 |
A167-304 |
| 15 |
Handle Bolt |
1 |
A167-304 |
A167-304 |
| 16 |
Gland Bolt |
1 |
DUCTILE CAST IRON |
|
| |

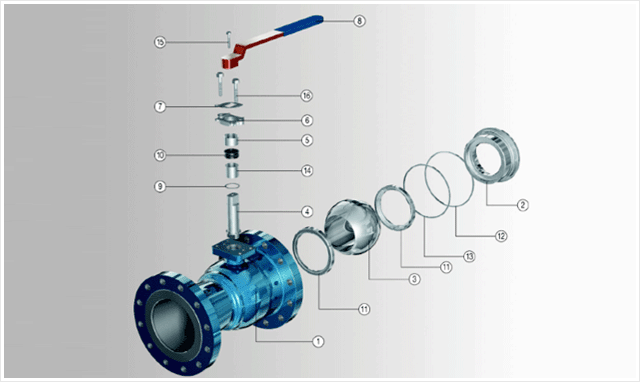

| Standard Material Specifications
-MODEL FB2- |
| |
 |
| |
| NO |
Part Name |
Q'ty |
Carbon Steel |
Stainless Steel NACE |
| 1 |
Body |
1 |
A213-WCB |
A351-CF8M |
| 2 |
Retainer |
1 |
A213-WCB |
A351-CF8M |
| 3 |
Ball |
1 |
A351-CF8M |
A351-CF8M |
| 4 |
Stem |
1 |
A276-316 |
A276-316 |
| 5 |
Gland |
1 |
A276-304 |
A176-304 |
| 6 |
Gland Flange |
1 |
A167-304 |
A167-304 |
| 7 |
Stopper |
1 |
A167-304 |
A167-304 |
| 8 |
Handle |
|
DUCTILE CAST IRON |
| 9 |
Thrust Washer |
1 |
PTFE |
PTFE |
|
| |
| 9 |
Thrust Washer |
1Set |
Graphite+Carbon Fiber |
Graphite+Carbon Fiber PTFE |
| 10 |
Gland packing |
2 |
A213-WCB |
Super Teflon |
| 11 |
Seat |
1 |
A351-CF8M |
316Hoop+Graphite |
| 12 |
Gasket |
1 |
A276-316 |
RTFE |
| 13 |
Gasket |
1Set |
A276-304 |
A193-B8M |
| 14 |
Stem Bearing |
1Set |
A167-304 |
A194-8M |
| 15 |
Handle Bolt |
1 |
A167-304 |
A193-B8M |
| 16 |
Gland Bolt |
1 |
A193-8M |
A193-8M |
|
| |
 |
 |
| |
