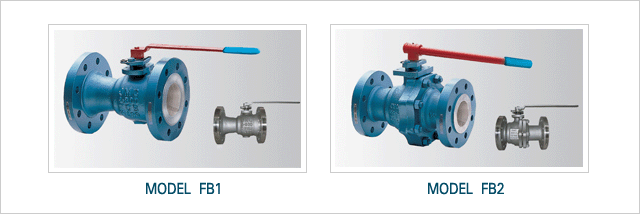

 Home > PRODUCT > Floating Ball Valves
|
|
|
| |
|
| |
 |
| |
| Production Range |
|
| API603/ASME 16.34
|
AP 1600 /BS1414 |
| Class |
Size |
Class |
Size |
| 150 |
"2~12" |
150 |
"2~24" |
| 300 |
"2~12" |
300 |
"2~16" |
| 600 |
"2~12" |
600 |
"2~12" |
| |
|
900 |
"2~12" |
| |
|
1500 |
"2~12" |
|
|
| |
| Design Standards |
|
| Pressure-Temperature rating |
ANSI B 16.34 |
| Face to Face Dimensions |
ANSI B 16.10 |
| End Flange Dimensions |
ANME B 16.5 |
| Testing |
API598/MSS-SP-41 |
| Bonnet Bolt |
ASTM A193/ASTM A320 |
| BonbetNut |
STM A194 |
| Marking |
MSS-SP-25 |
| Light wall Thickness |
API 603/ANSI B16.34 |
| Heavey Wall thickness |
PI 600/BS 1873 |
|
| |
 |
 |
| |
