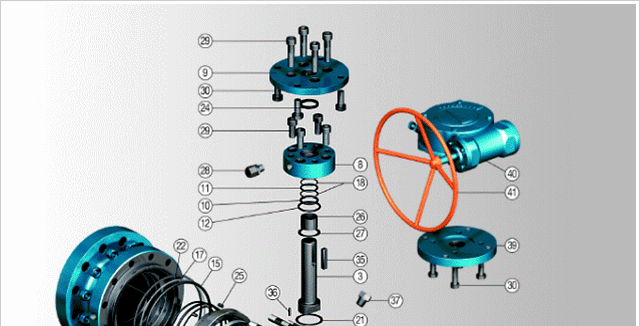

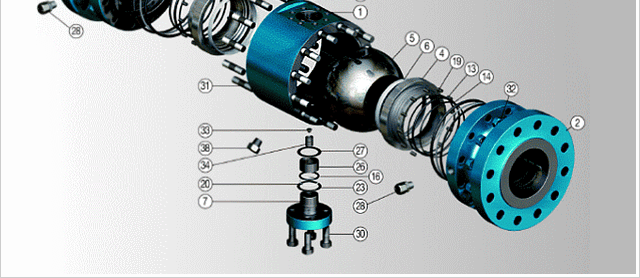

| NO |
Part Name |
CarbonSteel NACE |
Low Temp NACE |
Stainless Steel NACE |
| 1 |
Body |
A105 |
A350 LF2 |
A182 F316 |
| 2 |
Cap |
A105 |
A350 LF2 |
A182 F316 |
| 3 |
Stem |
AISI 1020+ENP |
AISI 4140+ENP/A182 F316 |
A182 F316/A564 630 |
| 4 |
Seat Ring |
A105+ENP |
A350 LF2+ENP/A182 F316 |
A182 F316 |
| 5 |
Ball |
A105+ENP |
A350 LF2+ENP/A182 F316 |
A162 F316/A351 CF8M |
| 6 |
Seat Insert |
Nylon/PTFE/RTFE/PEEK |
| 7 |
Trunnion |
AISI 1020/A105+ ENP
AISI 4140/A350 LF2+ ENP |
A479 361 |
| 8 |
Gland |
AISI1020/A105 |
AISI 4141/A350 LF2 |
A479 361 |
| 9 |
Adapter Plate |
AISI1045 |
LF2+ ENP1045 |
A479 361 |
| 10 |
Sten O-ring* |
Viton A |
HNBR/Polymite/Viton GLT |
HNBR/Viton GLT |
| 11 |
Stem Sub-seal** |
Viton A |
HNBR/Polymite/Viton GLT |
HNBR/Viton GLT |
| 12 |
Gland O-ring* |
Viton A |
HNBR/Polymite/Viton GLT |
HNBR/Viton GLT |
| 13 |
Seat O-ring* |
Viton A |
HNBR/Polymite/Viton GLT |
HNBR/Viton GLT |
| 14 |
Seat Sub-seal** |
Viton A |
HNBR/Polymite/Viton GLT |
HNBR/Viton GLT |
| 15 |
Cap O-ring* |
Viton A |
HNBR/Polymite/Viton GLT |
HNBR/Viton GLT |
| 16 |
Trunnion O-ring* |
Viton A |
HNBR/Polymite/Viton GLT |
HNBR/Viton GLT |
| 17 |
Cap Backup Ring |
PTFE/Nylon |
PTFE/Nylon |
PTFE/Nylon |
| 18 |
Gland Baxkup Ring |
PTFE/Nylon |
PTFE/Nylon |
PTFE/Nylon |
| 19 |
Seat Backup Ring |
PTFE/Nylon |
PTFE/Nylon |
PTFE/Nylon |
| 20 |
Trunnion Backup Ring |
PTFE/Nylon |
PTFE/Nylon |
PTFE/Nylon |
| 21 |
Gland Seal |
Spiral Wound Gasket 316SS + Graphite |
| 22 |
Cap Seal |
Spiral Wound Gasket 316SS + Graphite |
| 23 |
Trunnion Seal |
Spiral Wound Gasket 316SS + Graphite |
| 24 |
Stem Packing |
Graphite |
| 25 |
Seat Spring |
inconel X-750 |
| 26 |
Bearing |
SS316+PTFE/Carbon Steel+PTFE |
| 27 |
Thrust Washer |
SS316+PTFE/Carbon Steel+PTFE |
| 28 |
Sealant Fitting |
AISI 4140/A479 316 |
| 29 |
Socket Bolt |
A193 B7M |
A320 L7M |
A193 B8M |
| 30 |
Hex/Socket Bolt |
A193 B7M |
A320 L7M |
A193 B8M |
| 31 |
Stud Bolt |
A193 B7M |
A320 L7M |
A193 B8M |
| 32 |
Hex.Nut |
A194 2HM |
A194 7M |
A194 8M |
| 33 |
Grounding Pin |
A479 316 |
| 34 |
Grounding Spring |
A479 316 |
| 35 |
Key |
AISI 1045 |
A479 316 |
| 36 |
Dowel Pin |
AISI 1045 |
A479 316 |
| 37 |
Relief Plug |
A105 |
|
A182 F316 |
| 38 |
Drain Plug |
A105 |
|
A182 F316 |
| 39 |
Mounting Plate |
AISI 1045 |
A182 F316 |
| 40 |
Gear Operator |
A536 Case / A322 Worm Gear |
| 41 |
Hand Wheel |
A53 |
